NBS Rotary Table Blast System — Indexed Multi-Station Automation
MPN: NBS-IART72
$18,999.99
$24,499.99
Direct Shipment from Manufacturer

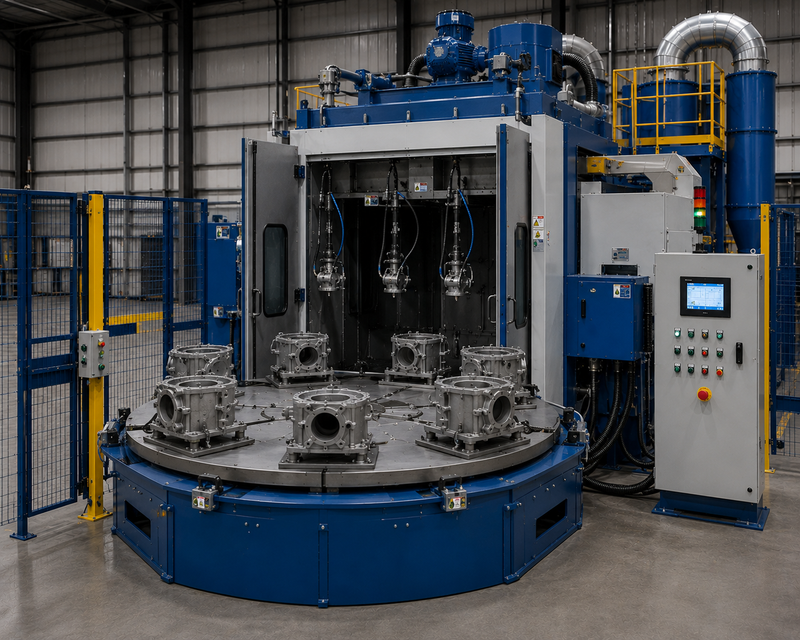

Rotary Table Automated Blast System
Multi-station indexed rotary table allows continuous load/unload while blasting occurs in the enclosed chamber.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
Rotary Table Automated Blast System
Multi-station indexed rotary table allows continuous load/unload while blasting occurs in the enclosed chamber. One operator loads parts on one side while the other side is being blasted — zero downtime between cycles. Perfect for repetitive batch processing.
Key Features
- 4-station indexed rotary table (load, blast, blow-off, unload)
- Fully enclosed blast chamber with viewing window
- 6-nozzle programmable blast array
- Automatic indexing with adjustable dwell time
- PLC with HMI touchscreen and cycle counter
- Integrated media reclaim with magnetic separator
- Sound-attenuated enclosure (<80 dB)
Specifications
| Spec | Value |
|---|---|
| Table Diameter | 72" |
| Load Capacity | 500 lbs per station |
| Blast Nozzles | 6x boron carbide |
| Cycle Time | 15–120 seconds (adjustable) |
| Air Requirement | 120 CFM @ 100 PSI |
| Power | 460V/3-phase/60Hz |
| Dimensions | 120" L x 120" W x 96" H |
| Weight | 4,500 lbs |
Applications
- Automotive castings
- Aerospace components
- Medical device finishing
- High-volume batch processing
- Precision surface preparation
