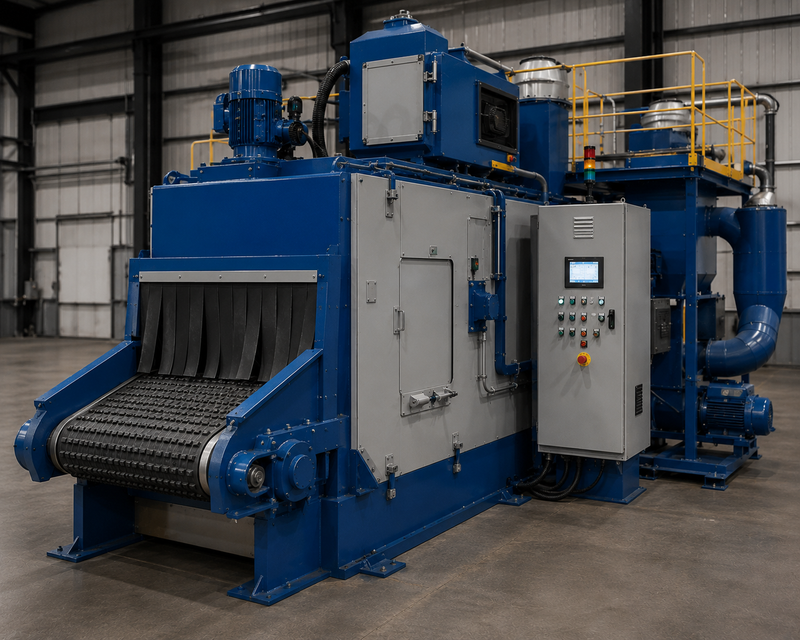

NBS Tumble Belt Blast Machine — Continuous Batch Automation
MPN: NBS-IATB36
$24,999.99
$32,499.99
Direct Shipment from Manufacturer
Tumble Belt Automated Blast Machine
Rubber tumble belt continuously tumbles parts while multiple blast wheels deliver 360° media coverage.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
Tumble Belt Automated Blast Machine
Rubber tumble belt continuously tumbles parts while multiple blast wheels deliver 360° media coverage. Load a batch, set the timer, and walk away. The machine processes hundreds of small-to-medium parts per cycle with perfectly uniform results every time.
Key Features
- Heavy-duty rubber tumble belt (endless loop)
- 2x centrifugal blast wheels (11" diameter, 15 HP each)
- Batch capacity up to 500 lbs per load
- Adjustable cycle timer (1–30 minutes)
- Automatic media separation and reclaim
- Manganese steel wear liners throughout
- PLC controls with batch counter and diagnostics
Specifications
| Spec | Value |
|---|---|
| Belt Width | 36" |
| Batch Capacity | 500 lbs (12 cu ft) |
| Blast Wheels | 2x 15 HP centrifugal |
| Throw Rate | 500 lbs/min per wheel |
| Cycle Time | 1–30 min (adjustable) |
| Power | 460V/3-phase/60Hz (45 HP total) |
| Dimensions | 96" L x 72" W x 84" H |
| Weight | 6,200 lbs |
Applications
- Forgings and castings
- Fasteners and springs
- Small machined parts
- Rust and scale removal
- Pre-coating surface prep
