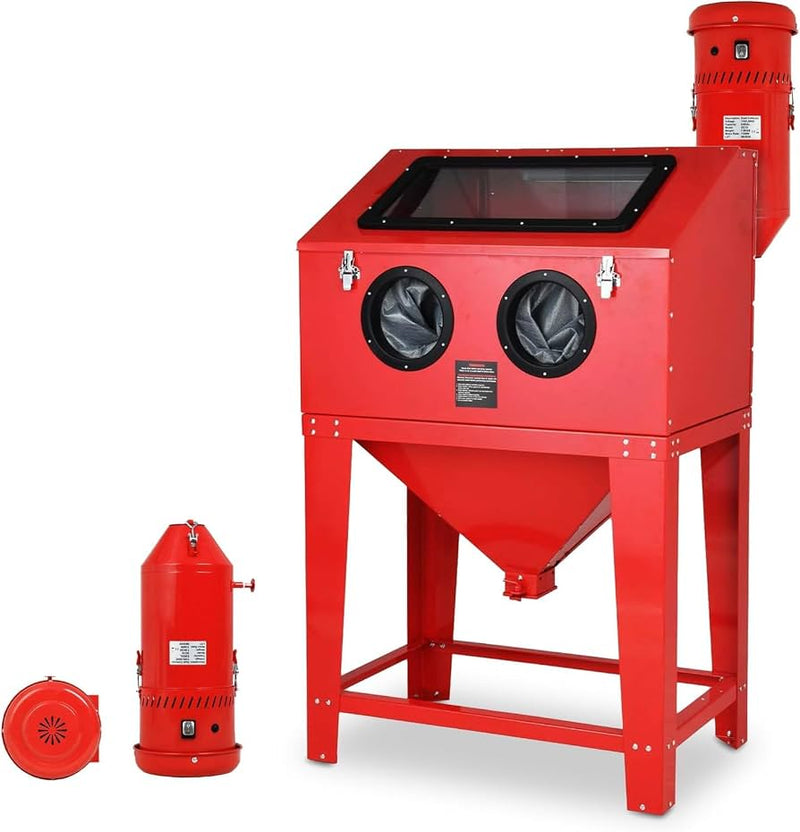

NBS-6000 Industrial Blast Cabinet — 60 Gallon with Dust Collector

National Blast Supply

NBS-6000 Industrial Blast Cabinet — 60 Gallon with Dust Collector

MPN: NBS-6000

$2,499.99 $3,199.99
Direct Shipment from Manufacturer
High-Capacity Industrial Cabinet with Integrated Dust Collection The NBS-6000 is a high-capacity 60-gallon industrial blast cabinet engineered for production environments where throughput and operator visibility are critical.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
Shipping Policy | Return Policy | Warranty Info

High-Capacity Industrial Cabinet with Integrated Dust Collection

The NBS-6000 is a high-capacity 60-gallon industrial blast cabinet engineered for production environments where throughput and operator visibility are critical. Featuring an integrated cyclone dust collector, this cabinet maintains crystal-clear visibility throughout extended blasting operations — eliminating the need for a separate external dust collection system.

Key Features

  • 60-gallon capacity — handles large automotive and industrial parts
  • Integrated cyclone dust collector with cartridge filter (99.7% efficiency)
  • 12-gauge welded steel construction — built for continuous production use
  • Dual LED light bars (2400 lumens total) for shadow-free visibility
  • Extra-large viewing window (20" x 28") with replaceable protective lens
  • 60" wide work area with 30" depth — fits engine blocks and large assemblies
  • Direct pressure blasting system for aggressive material removal
  • Foot pedal with dead-man control for safety compliance
  • Includes 5 tungsten carbide nozzles for extended nozzle life
  • Full media reclaim system with screen separator
  • Heavy-duty casters (2 locking) for shop mobility

Technical Specifications

Specification Value
Cabinet Capacity 60 Gallons
Work Area (Interior) 60" W x 30" D x 30" H
Overall Dimensions 72" W x 36" D x 68" H (with dust collector)
Top Door Opening 14" x 58"
Operating Pressure 60–150 PSI
Air Requirement (CFM) 20–35 CFM @ 100 PSI
Blasting System Direct Pressure
Construction 12-Gauge Welded Steel
Dust Collector Integrated Cyclone — 500 CFM, 99.7% filtration
Lighting Dual LED Bars (2400 lumens)
Nozzles 5 Tungsten Carbide Tips (3mm–7mm)
Weight 340 lbs
Shipping Weight 395 lbs (ships freight LTL)

Compatible Media

All media types including glass bead, aluminum oxide, steel grit, steel shot, crushed glass, garnet, silicon carbide, and specialty media. Direct pressure system handles aggressive media efficiently.

Recommended Air Compressor

Minimum 7.5 HP two-stage compressor with 80+ gallon tank delivering 30 CFM @ 100 PSI. For continuous production, a 10 HP rotary screw compressor is recommended.

Applications

Engine blocks, cylinder heads, transmission housings, large weldments, structural steel components, heavy equipment parts, aerospace components, and high-volume production blasting.

Shipping Information

Ships via LTL freight on a pallet. Curbside delivery standard; liftgate and inside delivery available at additional cost. Please allow 7–14 business days for delivery.

Shipping & Delivery

National Blast Supply offers free shipping on all orders over $2,500 within the contiguous United States.

Order Processing

3-5 business days handling time

In Transit

5-7 business days shipping via freight carrier

Total Estimated Delivery

8-10 business days from time of order

Depending on seasonality and availability, shipping times may vary. You will receive tracking information once your order has shipped. For questions about shipping to your area, please contact us at (307) 832-5565 or sales@nationalblastsupply.com.

Warranty & Returns

All products sold by National Blast Supply carry the full manufacturer warranty. Warranty terms vary by manufacturer and product. Please contact us for specific warranty details on this item.

Defective or Damaged Products

If you receive a defective or damaged product, please contact us within 48 hours of delivery at (307) 832-5565 or sales@nationalblastsupply.com. We will work with the manufacturer to resolve the issue promptly.

Returns

Returns of unused, undamaged products may be accepted within 30 days of delivery. A restocking fee may apply. Please contact us before returning any item. For full details, see our Refund & Return Policy.

Questions About This Product?

Our equipment specialists are happy to help you determine if this product is right for your application.

Call Us (307) 832-5565

Monday - Friday, 8:00 AM - 5:00 PM MST

Email Us sales@nationalblastsupply.com

We respond within 24-48 hours on business days

We can also provide custom quotes for bulk orders or special configurations.

High-Capacity Industrial Cabinet with Integrated Dust Collection

The NBS-6000 is a high-capacity 60-gallon industrial blast cabinet engineered for production environments where throughput and operator visibility are critical. Featuring an integrated cyclone dust collector, this cabinet maintains crystal-clear visibility throughout extended blasting operations — eliminating the need for a separate external dust collection system.

Key Features

  • 60-gallon capacity — handles large automotive and industrial parts
  • Integrated cyclone dust collector with cartridge filter (99.7% efficiency)
  • 12-gauge welded steel construction — built for continuous production use
  • Dual LED light bars (2400 lumens total) for shadow-free visibility
  • Extra-large viewing window (20" x 28") with replaceable protective lens
  • 60" wide work area with 30" depth — fits engine blocks and large assemblies
  • Direct pressure blasting system for aggressive material removal
  • Foot pedal with dead-man control for safety compliance
  • Includes 5 tungsten carbide nozzles for extended nozzle life
  • Full media reclaim system with screen separator
  • Heavy-duty casters (2 locking) for shop mobility

Technical Specifications

Specification Value
Cabinet Capacity 60 Gallons
Work Area (Interior) 60" W x 30" D x 30" H
Overall Dimensions 72" W x 36" D x 68" H (with dust collector)
Top Door Opening 14" x 58"
Operating Pressure 60–150 PSI
Air Requirement (CFM) 20–35 CFM @ 100 PSI
Blasting System Direct Pressure
Construction 12-Gauge Welded Steel
Dust Collector Integrated Cyclone — 500 CFM, 99.7% filtration
Lighting Dual LED Bars (2400 lumens)
Nozzles 5 Tungsten Carbide Tips (3mm–7mm)
Weight 340 lbs
Shipping Weight 395 lbs (ships freight LTL)

Compatible Media

All media types including glass bead, aluminum oxide, steel grit, steel shot, crushed glass, garnet, silicon carbide, and specialty media. Direct pressure system handles aggressive media efficiently.

Recommended Air Compressor

Minimum 7.5 HP two-stage compressor with 80+ gallon tank delivering 30 CFM @ 100 PSI. For continuous production, a 10 HP rotary screw compressor is recommended.

Applications

Engine blocks, cylinder heads, transmission housings, large weldments, structural steel components, heavy equipment parts, aerospace components, and high-volume production blasting.
