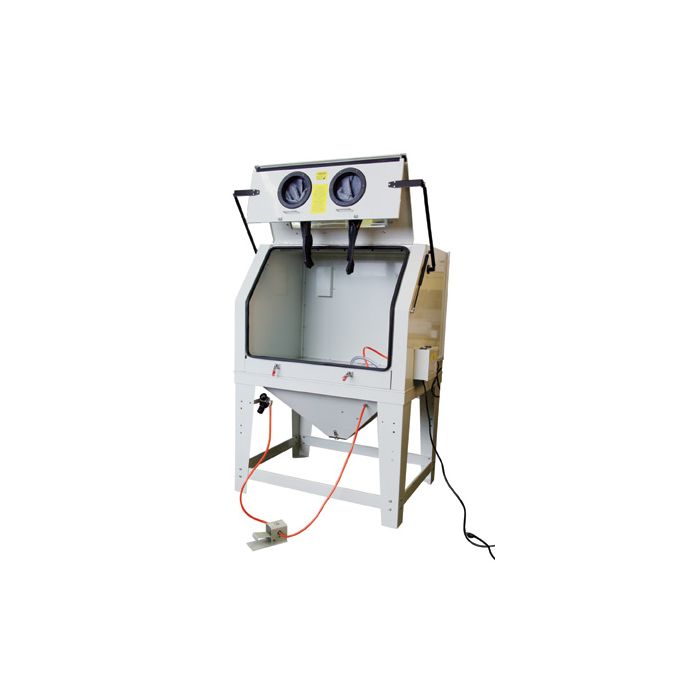

NBS-9000 Heavy-Duty Direct Pressure Blast Cabinet — 90 Gallon

Maximum-Capacity Professional Cabinet for High-Volume Operations

The NBS-9000 is our flagship blast cabinet — a 90-gallon heavy-duty direct pressure system designed for professional shops and manufacturing facilities that demand maximum throughput and uncompromising build quality. With a massive 72" wide work area and 14-gauge reinforced steel construction, this cabinet handles the largest parts while delivering aggressive material removal rates that siphon systems simply cannot match.

Key Features

• 90-gallon capacity — the largest in our cabinet lineup
• 72" wide x 36" deep work area — fits full-size automotive body panels
• Direct pressure blasting system — 3x faster than siphon feed
• 14-gauge reinforced welded steel with double-wall construction at wear points
• Integrated 750 CFM dust collector with HEPA-grade cartridge filter
• Triple LED light system (3600 lumens) — zero shadow zones
• Extra-large panoramic viewing window (24" x 32")
• Dual glove ports + side access door for oversized parts
• Pneumatic top door with gas strut assist for one-hand operation
• Full media reclaim with vibrating screen separator and magnetic separator
• Includes 6 tungsten carbide nozzles + 2 boron carbide nozzles
• Foot pedal dead-man control + emergency air shutoff
• Heavy-duty 6" casters (4 locking) rated for 2,000 lbs total

Technical Specifications

Compatible Media

All media types. Direct pressure system excels with aggressive media: steel grit, steel shot, aluminum oxide, garnet, silicon carbide. Also compatible with glass bead, crushed glass, and specialty media.

Recommended Air Compressor

Minimum 10 HP rotary screw compressor delivering 40+ CFM @ 100 PSI with 120+ gallon receiver tank. For continuous production, a 15 HP rotary screw is recommended.

Applications

Full automotive body panels, truck frames, heavy equipment components, structural steel, large castings, aerospace parts, marine hardware, and any application requiring maximum work envelope and aggressive material removal.

Shipping Information

Ships via LTL freight on a reinforced pallet. Commercial delivery with dock or forklift required. Residential delivery with liftgate available at additional cost. Please allow 10–21 business days for delivery.
