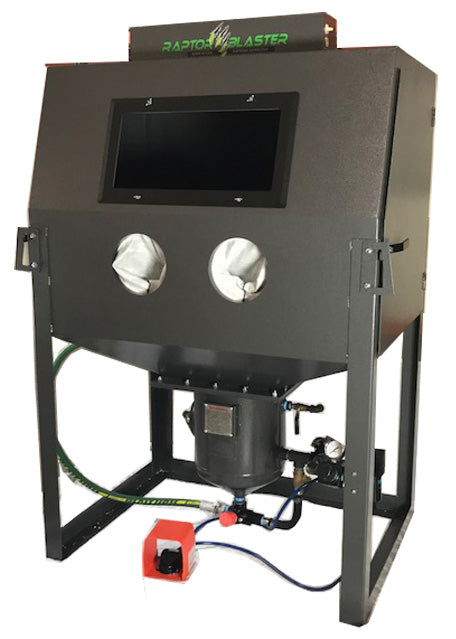

NBS-DP48 Direct Pressure Blast Cabinet — 48" Professional Grade

Direct Pressure Performance in a Mid-Size Package

The NBS-DP48 delivers the aggressive material removal speed of direct pressure blasting in a 48-inch cabinet footprint. Where siphon-feed cabinets rely on vacuum to draw media, the NBS-DP48 forces media through the nozzle under full line pressure — resulting in 3x faster stripping rates and the ability to tackle heavy rust, mill scale, and tough coatings that siphon systems struggle with.

Key Features

• Direct pressure blasting — 3x faster than siphon feed
• 48" work area handles large automotive and industrial parts
• 10-gallon ASME-rated pressure vessel with safety relief valve
• 12-gauge welded steel construction for direct pressure durability
• Dual LED light bars (2000 lumens) for clear visibility
• Extra-thick viewing window rated for direct pressure impact
• Metering valve for precise media flow control
• Moisture separator and air dryer included
• Foot pedal dead-man control (OSHA compliant)
• Includes 4 tungsten carbide nozzles (longer life under pressure)
• Full media reclaim with cyclone separator
• Integrated 400 CFM dust collector

Technical Specifications

Compatible Media

Excels with aggressive media: aluminum oxide, steel grit, garnet, silicon carbide, crushed glass. Also compatible with glass bead and all standard media. Direct pressure maximizes cutting speed with angular media.

Recommended Air Compressor

Minimum 7.5 HP two-stage piston or 5 HP rotary screw compressor with 80+ gallon tank delivering 30+ CFM @ 100 PSI.

Applications

Heavy rust removal, mill scale stripping, weld cleaning, paint removal from thick coatings, concrete surface prep, heavy equipment restoration, and any application where siphon blasting is too slow.

Shipping Information

Ships via LTL freight. Commercial delivery standard; liftgate available. Please allow 7–14 business days.
