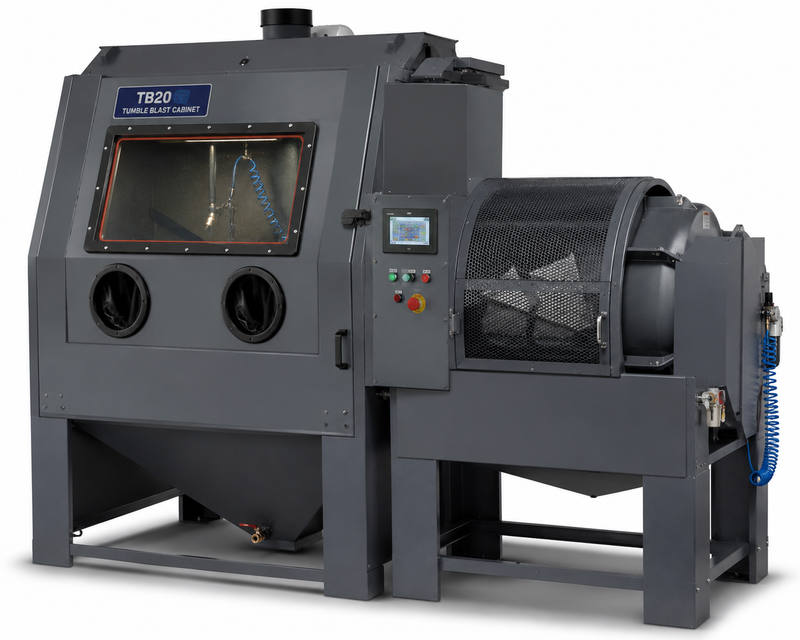

NBS-TB20 Tumble Blast Cabinet — Automated Batch Processing

Hands-Free Automated Blasting for Small Parts in Bulk

The NBS-TB20 is an automated tumble blast cabinet that processes hundreds of small parts simultaneously with zero operator intervention. Simply load your parts into the rotating drum basket, set the timer, and walk away. The tumbling action ensures 360-degree uniform coverage on every part — delivering consistent, repeatable finishes batch after batch. Ideal for deburring, descaling, and surface preparation of small manufactured components.

Key Features

• Fully automated operation — load, set timer, walk away
• 20" diameter rotating drum basket with adjustable speed (5–20 RPM)
• Processes up to 50 lbs of small parts per batch
• 360-degree uniform coverage — consistent finish on every part
• Programmable digital timer (1–60 minutes)
• Direct pressure blasting system with fixed nozzle array (3 nozzles)
• Enclosed design — zero dust, zero operator exposure
• Integrated dust collector with cartridge filter
• Stainless steel drum basket — corrosion resistant, long-life
• Quick-release drum door for fast loading/unloading
• Variable speed control for delicate to aggressive tumbling
• Compact footprint — fits in small production cells
• 110V single-phase power — no special electrical required

Technical Specifications

Compatible Media

Glass bead (recommended for most applications), aluminum oxide, ceramic beads, plastic media, and walnut shell. Fine mesh media (80–220 grit) recommended for best results. Not suitable for large/sharp media that could damage the drum screen.

Recommended Air Compressor

Minimum 5 HP compressor with 60+ gallon tank delivering 20 CFM @ 80 PSI for continuous batch operation.

Ideal Part Sizes

Parts from 0.25" to 6" in any dimension. Maximum individual part weight: 5 lbs. Best suited for fasteners, brackets, fittings, small castings, machined components, springs, and stamped parts.

Applications

Deburring machined parts, descaling heat-treated components, removing casting flash, surface preparation before coating, cleaning fasteners and hardware in bulk, finishing 3D-printed metal parts, and any high-volume small-part processing where manual blasting is too labor-intensive.

Shipping Information

Ships via standard ground freight. Residential delivery available. Please allow 5–10 business days for delivery.
