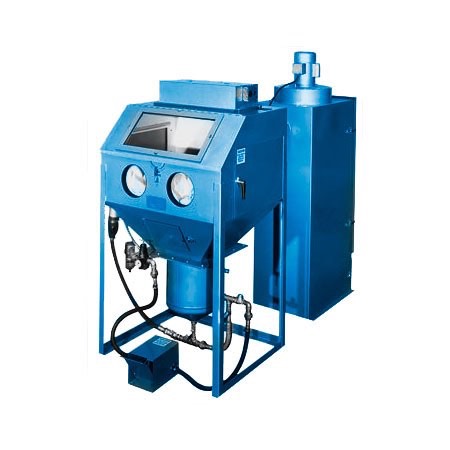

NBS-DP60X Extreme Duty Direct Pressure Cabinet — 60" with HEPA Filtration

Maximum Power Direct Pressure System with HEPA-Grade Air Quality

The NBS-DP60X represents the pinnacle of enclosed blast cabinet technology — combining a massive 60-inch direct pressure work area with HEPA-grade filtration that meets the strictest air quality standards. Designed for aerospace, defense, and precision manufacturing facilities where both blasting performance and environmental compliance are non-negotiable.

Key Features

• 60" wide direct pressure work area — maximum size + maximum speed
• 15-gallon ASME-rated pressure vessel with dual safety relief valves
• HEPA-grade filtration system (99.97% @ 0.3 microns) — meets EPA standards
• 10-gauge welded steel construction at blast zones — extreme durability
• Triple LED light system (4000 lumens) with backup lighting
• Panoramic viewing window (24" x 36") with auto-darkening option
• Precision metering valve with digital pressure readout
• Dual moisture separators with refrigerated air dryer connection
• Programmable PLC controller for automated blast cycles
• Includes 6 boron carbide nozzles (longest life available)
• Full media reclaim: cyclone + vibrating screen + magnetic separator
• Integrated 1000 CFM HEPA dust collection system
• Sound-dampened enclosure — under 78 dB at operator position
• Fork pockets for easy relocation

Technical Specifications

Compatible Media

All media types. Optimized for aluminum oxide, garnet, steel grit, glass bead, ceramic shot, and specialty aerospace-grade media. Boron carbide nozzles provide 10x longer life than ceramic with aggressive media.

Recommended Air Compressor

Minimum 15 HP rotary screw compressor with 240+ gallon receiver delivering 50+ CFM @ 125 PSI. Refrigerated air dryer strongly recommended for consistent performance.

Applications

Aerospace components, defense/military parts, precision manufacturing, medical device finishing, turbine blades, nuclear decontamination, and any facility requiring HEPA-grade air quality compliance during blasting operations.

Shipping Information

Ships via dedicated LTL freight on reinforced pallet. Commercial delivery with dock/forklift required. Installation assistance available. Please allow 21–30 business days for delivery. Custom configurations available — contact us for details.
