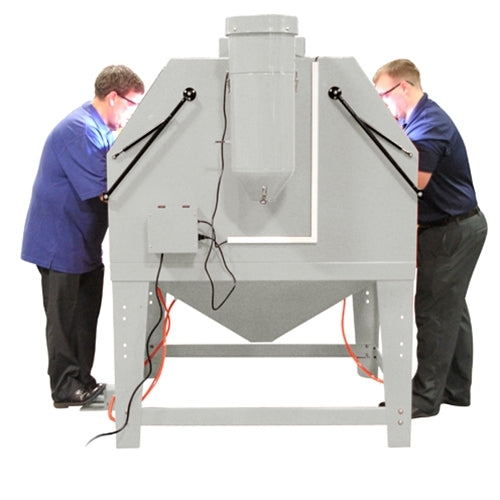

NBS-DS72 Dual-Station Blast Cabinet — 72" Two-Operator System

Two-Operator Simultaneous Blasting for Maximum Productivity

The NBS-DS72 is a dual-station blast cabinet engineered for production facilities that need to maximize throughput without doubling their floor space. Two operators can blast simultaneously from opposite sides of the same cabinet, effectively doubling output while sharing a single dust collection and media reclaim system. Built for 8+ hour continuous operation in demanding manufacturing environments.

Key Features

• Dual operator stations — two workers blast simultaneously
• 72" wide shared work area with center divider option
• 12-gauge heavy-duty welded steel construction
• Four 8" glove ports (two per station) with heavy-duty nitrile gloves
• Independent blasting guns with individual pressure controls per station
• Shared high-efficiency cyclone dust collector (1000 CFM)
• Dual LED light arrays — dedicated lighting per station (3000 lumens total)
• Full-length top-loading door with pneumatic gas strut assist
• Dual foot pedals — independent dead-man controls per operator
• V-shaped hopper with vibrating screen media separator
• 500 lb part capacity on reinforced internal grating
• Includes 8 tungsten carbide nozzles (4 per station)
• Optional center partition for independent work zones

Technical Specifications

Compatible Media

Glass bead, aluminum oxide, steel grit, steel shot, garnet, crushed glass, silicon carbide, walnut shell, plastic media, and soda. Both stations share the same media type per session.

Recommended Air Compressor

Minimum 15 HP rotary screw compressor with 120+ gallon receiver tank delivering 50+ CFM @ 100 PSI for continuous dual-station operation.

Applications

High-volume production environments, automotive restoration shops processing multiple parts simultaneously, manufacturing facilities with dedicated blasting departments, and any operation where doubling throughput without doubling floor space is critical.

Shipping Information

Ships via LTL freight on a reinforced pallet. Commercial delivery with dock or forklift required. Please allow 14–21 business days for delivery. Assembly of dust collector required (approximately 2 hours with two people).
